QuarkPhysics

QuarkPhysics is a 2D physics engine designed for games. Its goal is to provide a reasonable approach to simulate rigid bodies, soft bodies, and different physics models together.

Documentation

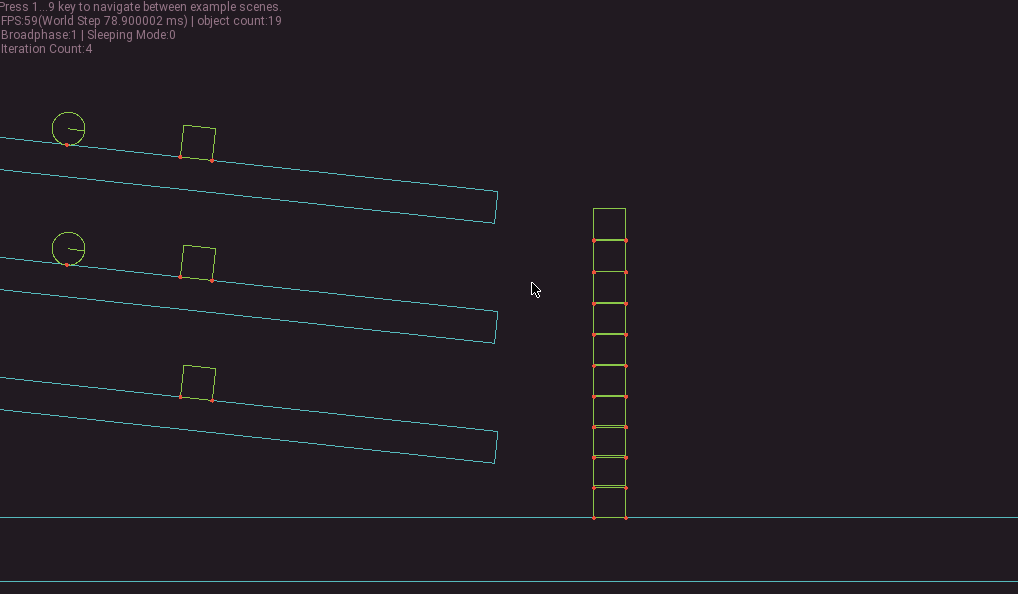

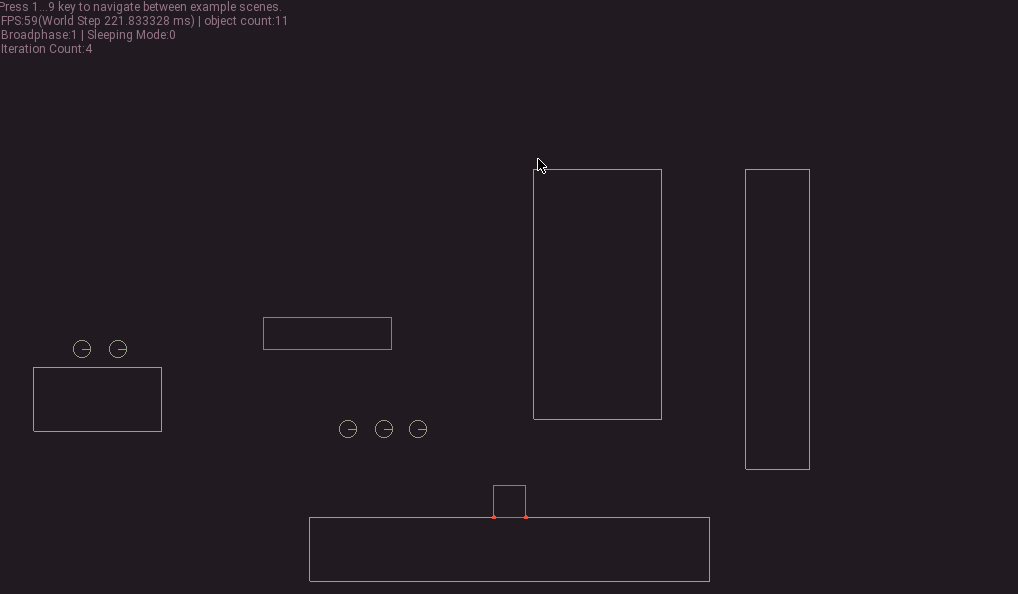

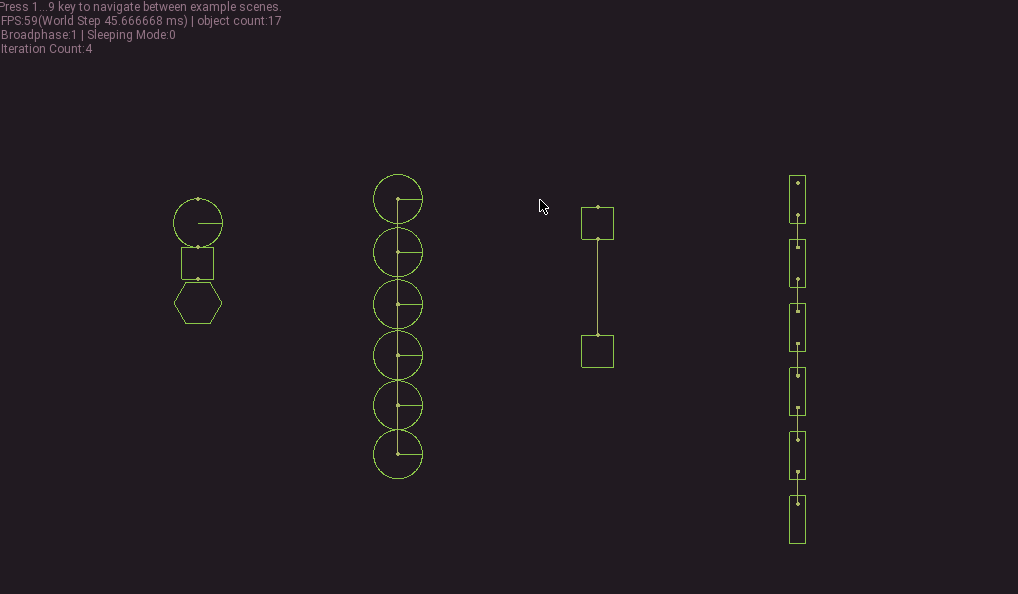

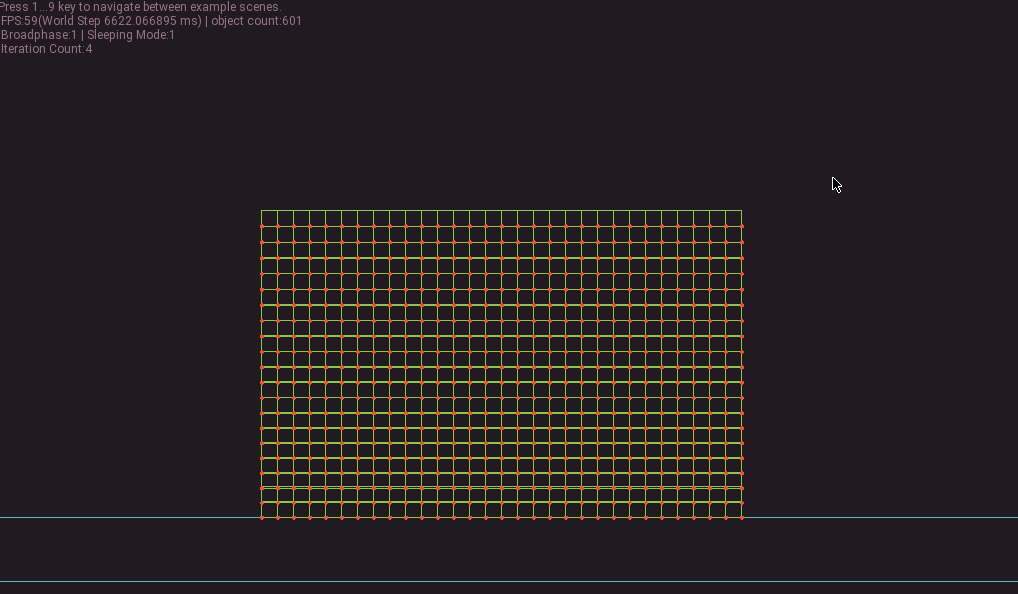

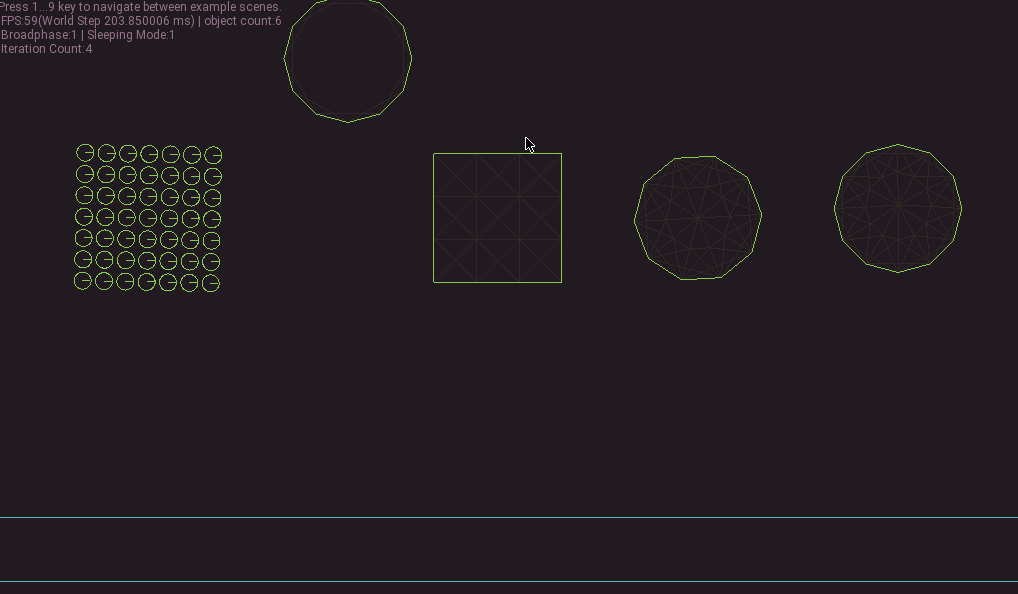

Examples

---

Show Examples



Features

• General Features
  • Primitive shape types (circle, polygon, rectangle, etc.)
  • Physical properties (mass, area, restitution, etc.)
  • The API is designed specifically for 2D video games.
  • Raycasting
  • Collision layer masks for advanced collision filtering
  • SAP for broadphase
  • Supports sleeping islands to improve CPU performance.
  • Flexible and advanced event system.
  • It uses pixels directly as a unit without any abstractions.
  • Unlimited shape-mesh support for bodies.
  • Simple and consistent API
  • External .qmesh file support. There is also QMeshEditor app for create/edit/manage qmesh files.
• Rigid bodies
  • Convex polygons support.
  • Joints to connect bodies.
  • Reasonable stability for stacked objects.
  • Kinematic bodies for creating controllable physics objects.
  • Area bodies for detecting and reporting collisions.
• Soft Bodies
  • Springs to connect particles.
  • Mass-spring model.
  • Area-volume preserving model.
  • Shape matching features.
  • Self collisions.
  • PBD dynamics.
  • Internal springs and internal particles for adding more complexity to soft body simulations.
  • Customizable constraints for adding more control to simulations.
  • Advanced particle methods.

Building Examples

You need to install SFML and CMake on your system before.

Download project, enter the main folder, and call this:

    ./build.sh -r

Or you can compile the project directly via gcc if you’re on linux by calling this:

    ./run_linux_fast.sh -r

Using

Copy the “QuarkPhysics” named subfolder in the main folder to your project and use it.

Third Party

• nlohmann’s json for the json parsing. (Importing meshes via *.qmesh files)
• SFML library for window,input,opengl.
• Doxygen-Awsome for the custom themed documentation.

Roadmap

• 1.0
  • API revisions (v0.9x)
  • Optimizations ( v0.9x)
  • Bug fixes
• 1.1
  • Automatic conversion of concave polygons to convex polygons (added v0.9x)
  • Fluid dynamics
• 1.2
  • UV mapping features to QMesh
  • Destructable rigid bodies.
• 1.3
  • Continuous collision dedection (CCD)
  • Multithreading
